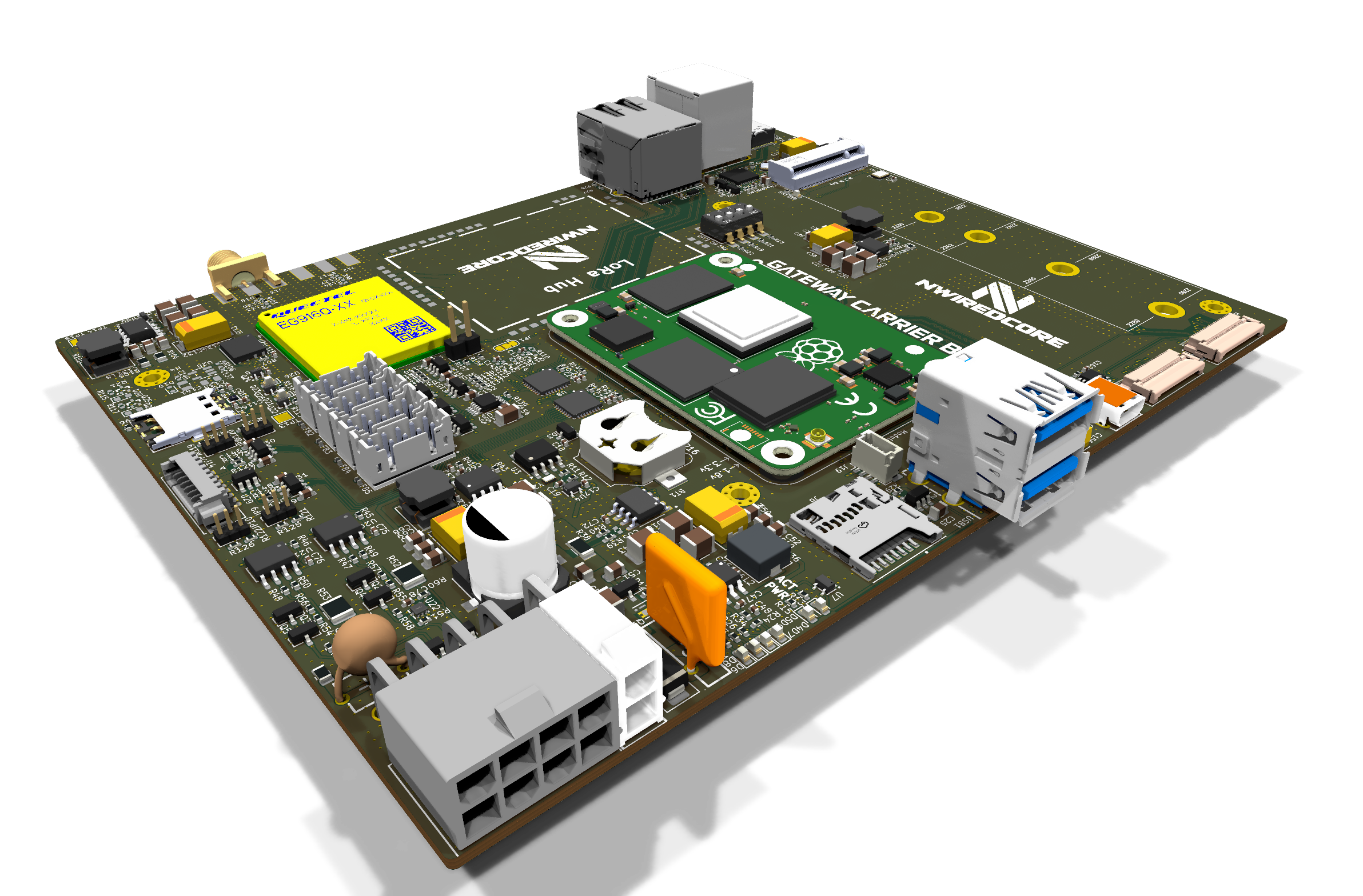

CM4 / CM5 Gateway Carrier Board — base configuration render, without the optional LoRa Hub

Compute Module shown for illustration — not included.

A carrier board for the Raspberry Pi Compute Module 4 and Compute Module 5, designed for industrial gateway and edge roles.Details
Primary project

The CM4 / CM5 Gateway Carrier Board

The CM4 / CM5 Gateway Carrier Board turns a Raspberry Pi Compute Module into a wired-and-cellular industrial gateway. It pairs Gigabit Ethernet and NVMe / microSD storage with an LTE modem (Nano-SIM plus an onboard eSIM IC), two independent RS-485 ports, universal and vibration sensor inputs, and MIPI camera / display plus micro-HDMI, on a board built around a wide industrial DC input. The base configuration shown uses an LTE modem without GNSS; GNSS is available through a compatible LTE / GNSS modem variant. Engineering design is complete — schematic, PCB layout and the manufacturing package (Gerbers, BOM, CPL) — and the board is ready for prototype manufacturing. No prototypes have been built or tested yet.

Compute
Raspberry Pi Compute Module 4 & CM5
Power input
Approx. 7.5–24 V DC (design target)
Stage
Hardware design complete — prototype manufacturing next
Register interestFull specification

Key capabilities

  • Raspberry Pi Compute Module 4 / 5 (CM4 / CM5)
  • Gigabit Ethernet
  • LTE modem — Nano-SIM + onboard eSIM
  • M.2 NVMe SSD, 2280 + microSD
  • 2 × independent RS-485 ports
  • 4 × universal digital sensor inputs
  • 4 × dedicated vibration sensor inputs
  • Industrial DC input, approx. 7.5–24 V DC

Current design intent · not final specification

Development status

Where the work stands

Engineering progress on the primary project, stage by stage. Full detail for every project is on the development page.

CM4 / CM5 Gateway Carrier BoardAll projects
  1. ArchitectureCompleted

    Block diagram, interface allocation and power tree fixed.

  2. SchematicCompleted

    Full capture complete — compute module, power, Ethernet, LTE, USB, RS-485 and sensor interfaces.

  3. PCB LayoutCompleted

    Board outline, stack-up, placement and routing complete.

  4. Manufacturing packageCompleted

    Gerber files, BOM and CPL / placement files complete — ready for factory quoting.

  5. Prototype manufacturingNext step

    Next milestone: board fabrication and parts procurement.

  6. Assembly and bring-upUpcoming

    Board assembly, then power, boot and interface checks on the first units.

  7. Hardware testing and validationUpcoming

    Ethernet, LTE, USB, RS-485, sensor I/O, power range and thermal checks against the design intent.

  8. Design revision if requiredFuture

    Any fixes found during bring-up and testing folded into a revised board.

  9. Pilot / small production batchFuture
Also in development

More projects

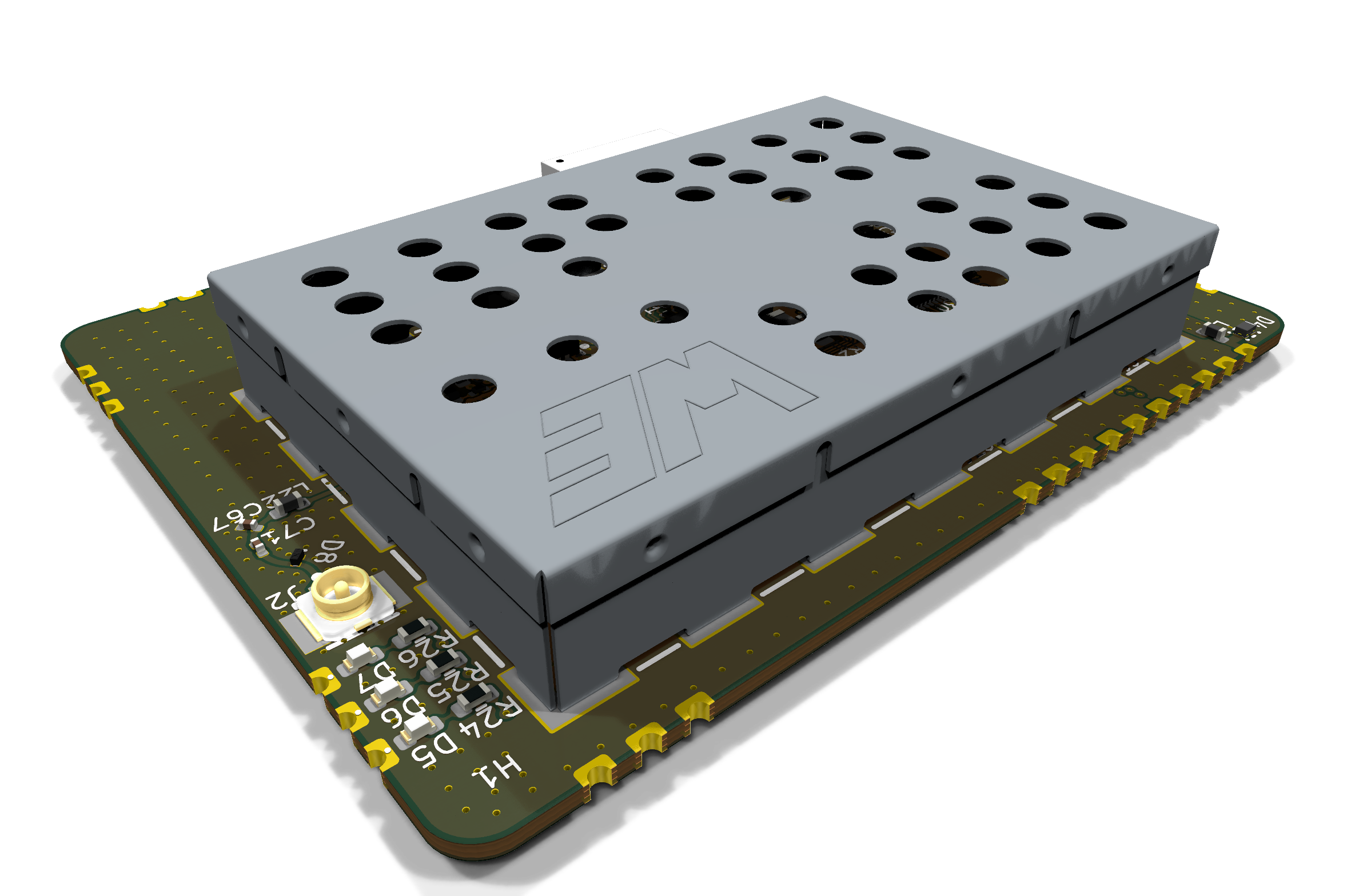

LoRa Hub — assembled multi-channel LoRa concentrator and GNSS module
ProjectReady for prototype manufacturing

LoRa Hub

LoRa Hub is a multi-channel LoRa concentrator and GNSS companion module designed for the NWIREDCORE Gateway Carrier Board.
