LoRa Hub
Ready for prototype manufacturingLoRa Hub is a multi-channel LoRa concentrator and GNSS companion module designed for the NWIREDCORE Gateway Carrier Board.
What it is
LoRa Hub is a multi-channel LoRa concentrator and GNSS companion module for the NWIREDCORE CM4 / CM5 Gateway Carrier Board. It is designed to communicate with multiple LoRa sensor and device nodes while providing integrated GNSS functionality to the host system. It is a companion module, not a standalone device, and it always includes GNSS. It is a compact, castellated board intended to be mounted on a host board, with the layout driven by RF performance. Hardware design and the manufacturing package are complete; prototype manufacturing, bring-up and validation are still ahead. No prototypes have been built or tested yet.
Inside the RF section

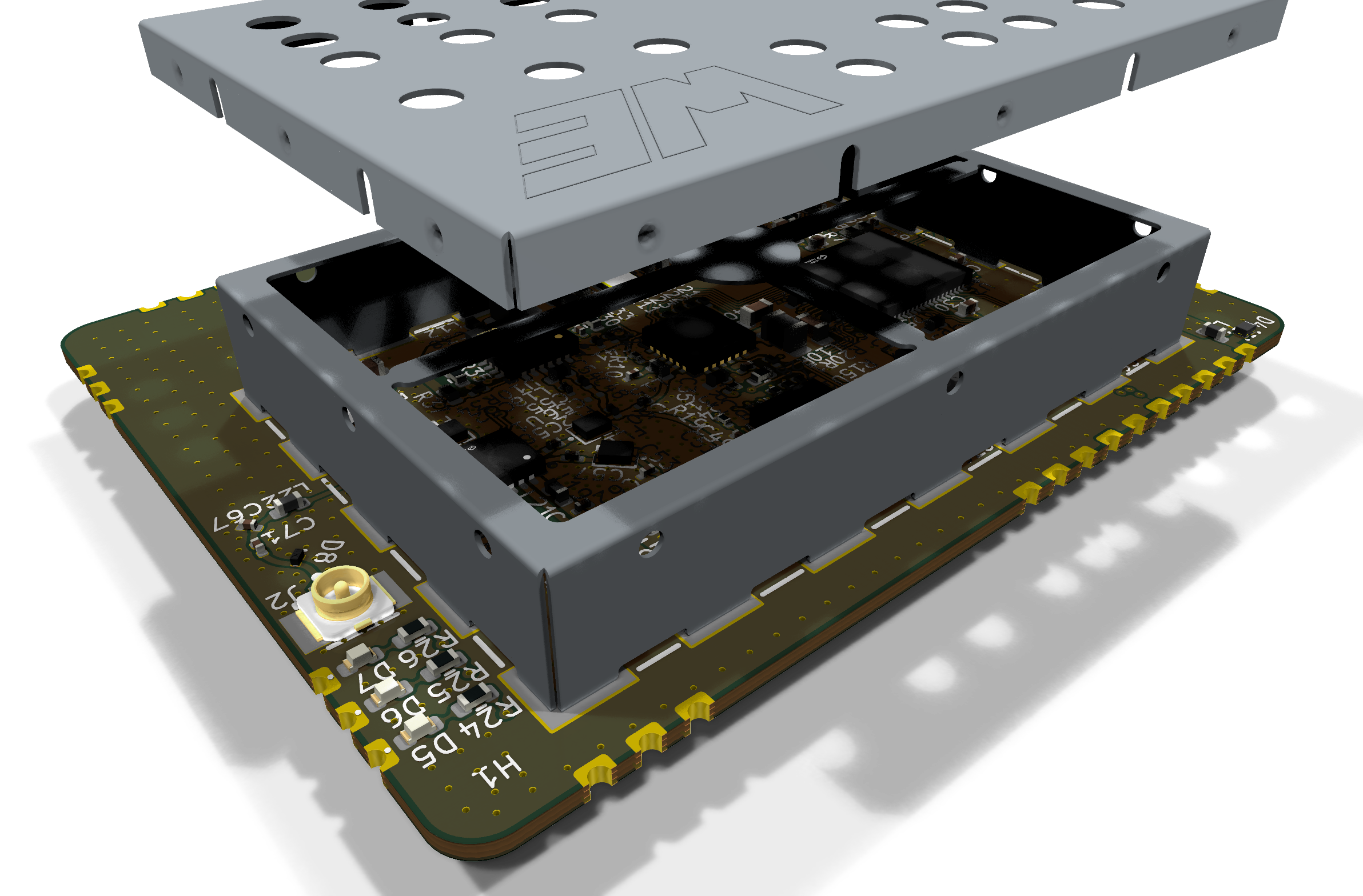

The RF section is shielded in the assembled module. The open view is shown only to reveal the circuitry beneath the shield.
Board views

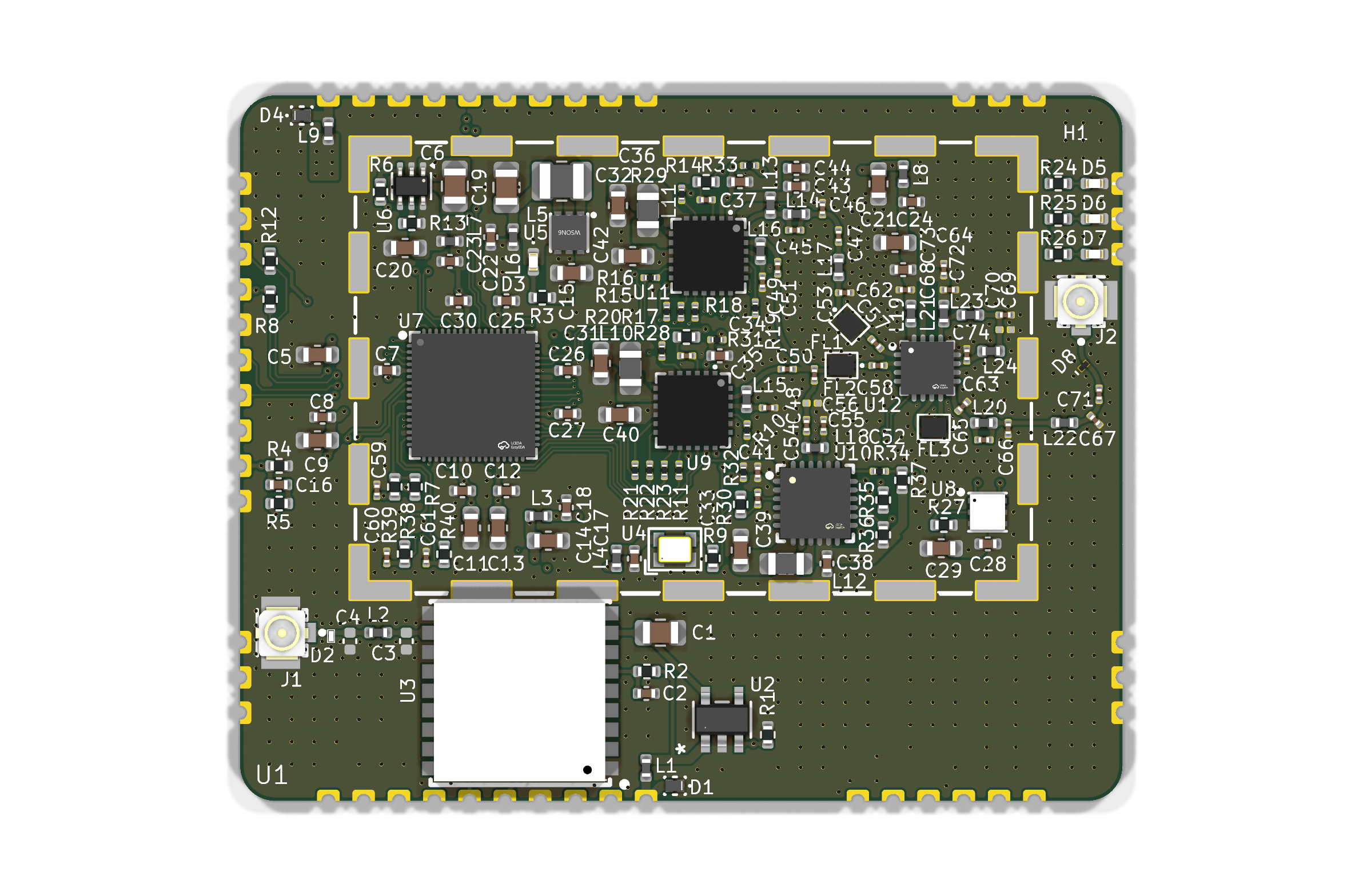

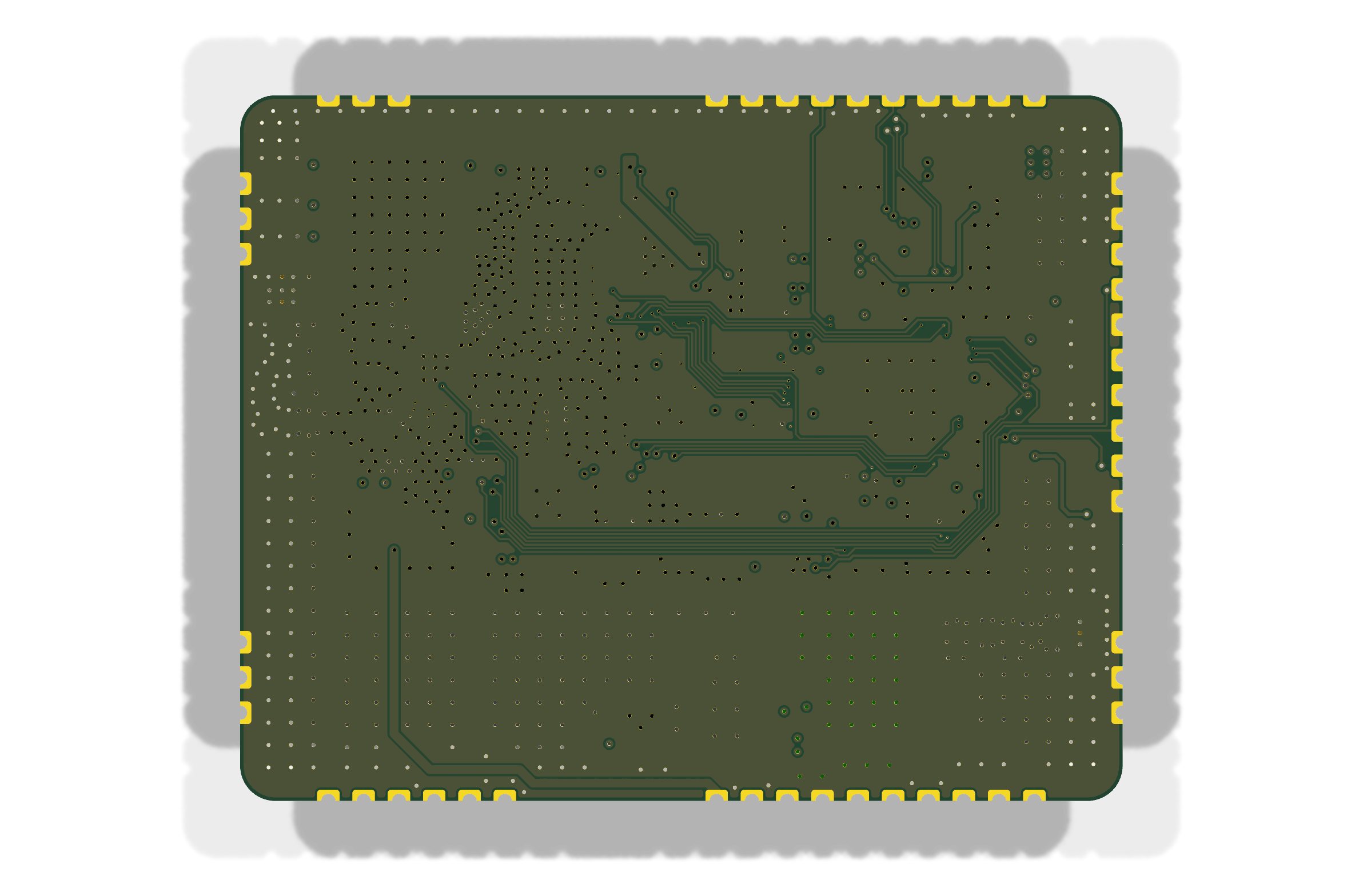

Top and bottom of the board (KiCad ray-traced renders). The RF shield is removed in the top view to show the component layout.
Main features
Current design intent. Individual items may still change during prototype bring-up and validation.
- 01Multi-channel LoRa concentrator
- 02Integrated GNSS (always present)
- 03Companion module for the NWIREDCORE Gateway Carrier Board
- 04Compact, castellated board format
- 05RF-focused design
Current design specification
Current design specifications. Some details may change after prototype bring-up and validation.
Function
- Multi-channel LoRa concentrator architecture
- Integrated GNSS, always present
- Designed to communicate with multiple LoRa sensor / device nodes
- Provides GNSS functionality to the host system
Form factor
- Compact PCB / module format
- Castellated edges for board-to-board mounting on a host
- Companion module — operates with the NWIREDCORE Gateway Carrier Board
Design focus
- RF-focused layout and antenna handling
Intended applications
Target use cases for the design. This is not a claim of commercial deployment.
- Multi-node LoRa sensor collection
- Remote monitoring and telemetry
- GNSS-enabled gateway applications
- Custom embedded systems
Roadmap
- ArchitectureCompleted
RF chain, multi-channel concentrator front end, antenna strategy and module footprint fixed.
- SchematicCompleted
LoRa concentrator front end and GNSS receiver sections captured.
- PCB LayoutCompleted
Compact castellated layout complete, routed for RF performance.
- Manufacturing filesCompleted
Design and manufacturing files ready for factory ordering.
- Prototype manufacturingNext step
Next milestone: fabrication and assembly of the first modules.
- Bring-up and testingUpcoming
Power, LoRa communication, GNSS and basic interface checks on the first units.
- RF / GNSS validationUpcoming
Radio link and satellite positioning performance measured on hardware.
- Field testingUpcoming
- Revision if requiredFuture
Hardware design and the manufacturing package are complete; the next milestone is prototype fabrication and assembly. The current design is a multi-channel LoRa concentrator architecture — higher-level protocol software is not yet implemented or validated. Frequencies, output power, dimensions, certifications and production status are still to be confirmed through prototyping and are deliberately not listed yet.
